Power Distribution Cabinet

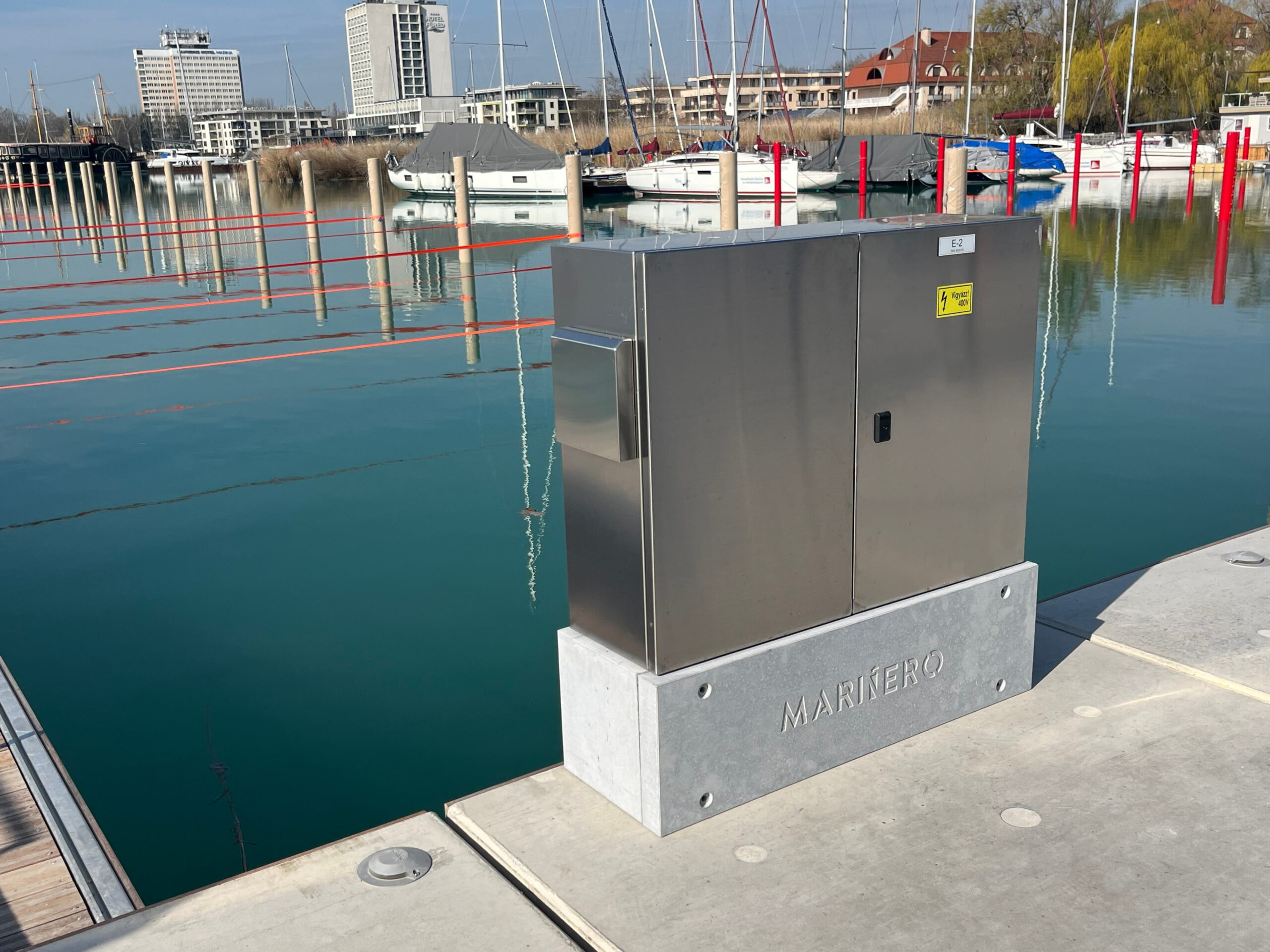

Built for marina power distribution, this stainless steel cabinet provides a central connection point for supplying shore power pedestals and waterfront facilities. Its compact design, lockable front doors and brushed finish blend naturally into modern harbour environments.
AISI 316L stainless steel enclosure with a 1.5 mm sheet thickness. Stainless steel doors, hinges and external fittings, with an internal mounting plate for electrical equipment.
Brushed stainless steel finish. No additional painted coating.
Rated voltage: 230/400 V AC
Frequency: 50 Hz
Main supply rating: 125 A
Supply system: Three-phase
Cabinet dimensions: 1200 × 1000 × 400 mm (H × W × D)
Installation: Floor-mounted on a raised plinth
Cable entry: Bottom entry
Access: Lockable double front doors
